Reverse proxy
OpenList listens to port 5244 by default. If modified, please also update the port number in the configuration below.
If you are using reverse proxy, please ensure that the correct Host header is passed, as OpenList will generate the URL based on this information.
If the Host header is unavailable, you can use the higher-priority X-Forwarded-Host header (non-standard header). If the issue persists, configure the site_url.
If you want to use a sub folder, you should configure the site_url. Refer to reverse proxy with sub folder.
WARNING
If you need to proxy to a non-standard port, make sure to pass the domain:port information through the Host or X-Forwarded-Host header, otherwise the port will be lost in URLs!
OpenList 默认监听 5244 端口。如有修改，请一并修改下列配置中的端口号。
如果您使用反向代理，请确保传递正确的 Host 、 X-Forwarded-Proto 头部信息，OpenList 将根据该信息生成 URL 地址。
如果 Host 头不可用，您可以使用优先级更高的 X-Forwarded-Host（非标准头部）。如果问题仍然存在，请通过配置 site_url 进行设置。
如果你想使用子目录，请通过配置 site_url 进行设置。参考 如何对子目录进行反向代理。
WARNING
如果需要反向代理到非标准端口，请务必通过 Host 或 X-Forwarded-Host 标头传递实际访问的 域名:端口 信息，否则会导致获取到的链接丢失端口！
nginx
https://nginx.org/en/docs/http/ngx_http_proxy_module.html
Add in the server field of the website configuration file:
在网站配置文件的 server 字段中添加：
location / {
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Range $http_range;
proxy_set_header If-Range $http_if_range;
proxy_redirect off;
proxy_pass http://127.0.0.1:5244;
proxy_http_version 1.1;
# the max size of file to upload
client_max_body_size 20000m;
}WARNING
If you use the aaPanel, be sure to delete the following default configuration:
location ~ ^/(\.user.ini|\.htaccess|\.git|\.svn|\.project|LICENSE|README.md
location ~ .\*\.(gif|jpg|jpeg|png|bmp|swf)$
location ~ .\*\.(js|css)?$Disable Nginx caching in /www/server/nginx/conf/proxy.conf or the corresponding website configuration file. Otherwise, with the default configuration, when accessing large files, Nginx will attempt to cache the remote file locally first, resulting in playback failures.
proxy_cache cache_one; # Remove this line
proxy_max_temp_file_size 0; # Add this lineWARNING
如果使用宝塔面板，请务必删除以下默认配置：
location ~ ^/(\.user.ini|\.htaccess|\.git|\.svn|\.project|LICENSE|README.md
location ~ .\*\.(gif|jpg|jpeg|png|bmp|swf)$
location ~ .\*\.(js|css)?$并在/www/server/nginx/conf/proxy.conf中或对应网站配置文件中设置禁用 nginx 缓存，否则默认配置下访问较大文件时 nginx 会先尝试将远程文件缓存至本机，导致播放失败
proxy_cache cache_one; # 删除这一行
proxy_max_temp_file_size 0; #加上这一行::: note Nginx Host Variables Differences
| Variable | Description | Includes Port | Notes |
|---|---|---|---|
$http_host | The original Host request header | Yes | If the Host request header is missing, the value will be empty; not recommended for best practices |
$host | Server name from the Host request header field | No | Defaults to the server’s server_name if Host field is missing |
$host:$server_port | Server name + port | Yes | Use this combination when you need to use a non-default port (other than 80 or 443) |
Nginx 主机变量区别
| 变量 | 内容 | 是否包含端口号 | 备注 |
|---|---|---|---|
$http_host | 原始的 Host 请求标头 | 是 | 如果 Host 请求标头缺失，值为空，不符合最佳实践 |
$host | Host 请求标头字段中的服务器名称 | 否 | 在没有 Host 字段时，默认使用服务器的 server_name |
$host:$server_port | 服务器名称 + 端口 | 是 | 当需要使用非默认 80、443 端口时，请修改为这个组合 |
If HTTP/3 is needed, the corresponding Host line should be modified to:
proxy_set_header Host $host:$server_port;This modified configuration will be compatible with requests using HTTP/2 or lower versions.
如果需要使用 HTTP/3，需要将对应 Host 行修改为：
proxy_set_header Host $host:$server_port;这样修改后的配置同时也可以兼容 HTTP/2 及更低版本的请求。
Apache
Add the anti-generation configuration item ProxyPass under the VirtualHost field, such as:
<VirtualHost *:80>
ServerName myapp.example.com
ServerAdmin webmaster@example.com
DocumentRoot /www/myapp/public
AllowEncodedSlashes NoDecode
ProxyPreserveHost On
ProxyPass "/" "http://127.0.0.1:5244/" nocanon
ProxyPassReverse "/" "http://127.0.0.1:5244/" nocanon
</VirtualHost>在 VirtualHost 字段下添加配置项 ProxyPass，如：
<VirtualHost *:80>
ServerName myapp.example.com
ServerAdmin webmaster@example.com
DocumentRoot /www/myapp/public
AllowEncodedSlashes NoDecode
ProxyPreserveHost On
ProxyPass "/" "http://127.0.0.1:5244/" nocanon
ProxyPassReverse "/" "http://127.0.0.1:5244/" nocanon
</VirtualHost>Caddy
Add the reverse proxy configuration item reverse_proxy under the Caddyfile file, for example:
在 Caddyfile 文件下添加 reverse_proxy 反向代理配置项，如：
:80 {
reverse_proxy 127.0.0.1:5244
}If deployed on a server that is functioning properly on port 443 and accessed using a domain name, it is recommended to use this configuration to let Caddy automatically request a certificate:
（Replace example.com with your own resolved domain name）
如果部署在 443 端口正常使用的服务器上且使用域名进行访问，建议使用这种配置让 Caddy 自动申请证书：
（将 example.com 替换为你自己解析后的域名）
example.com {
reverse_proxy 127.0.0.1:5244
}Tutorial: Setting up Reverse Proxy in aaPanel
教程：宝塔面板设置反向代理

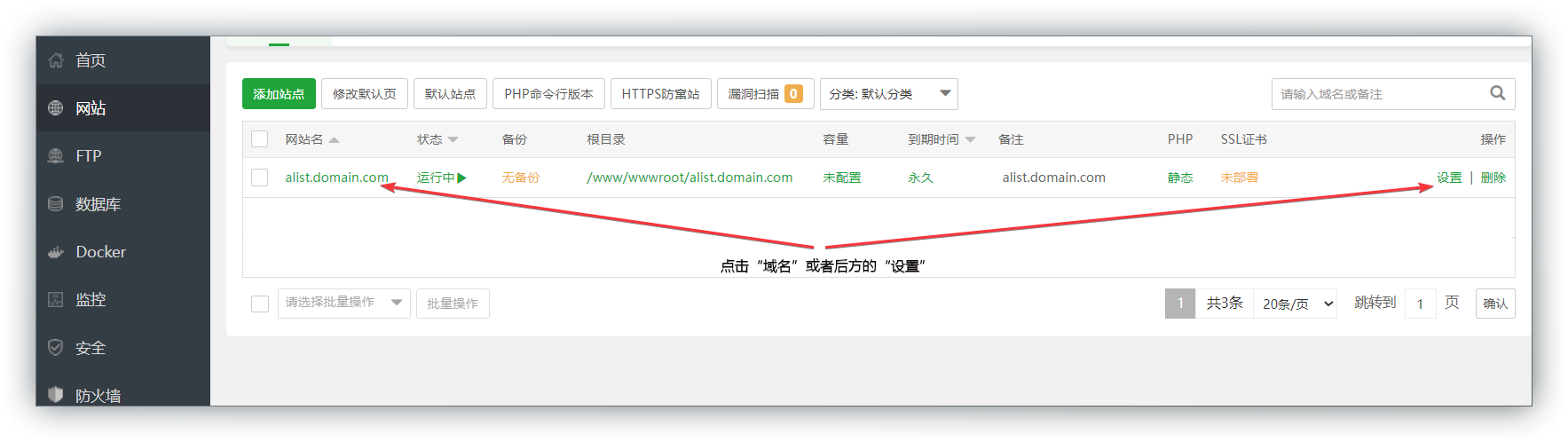

- Login to the aaPanel and add a new website.
::
- 登录宝塔面板，添加站点；
- Modify the website settings.
- 修改站点设置；

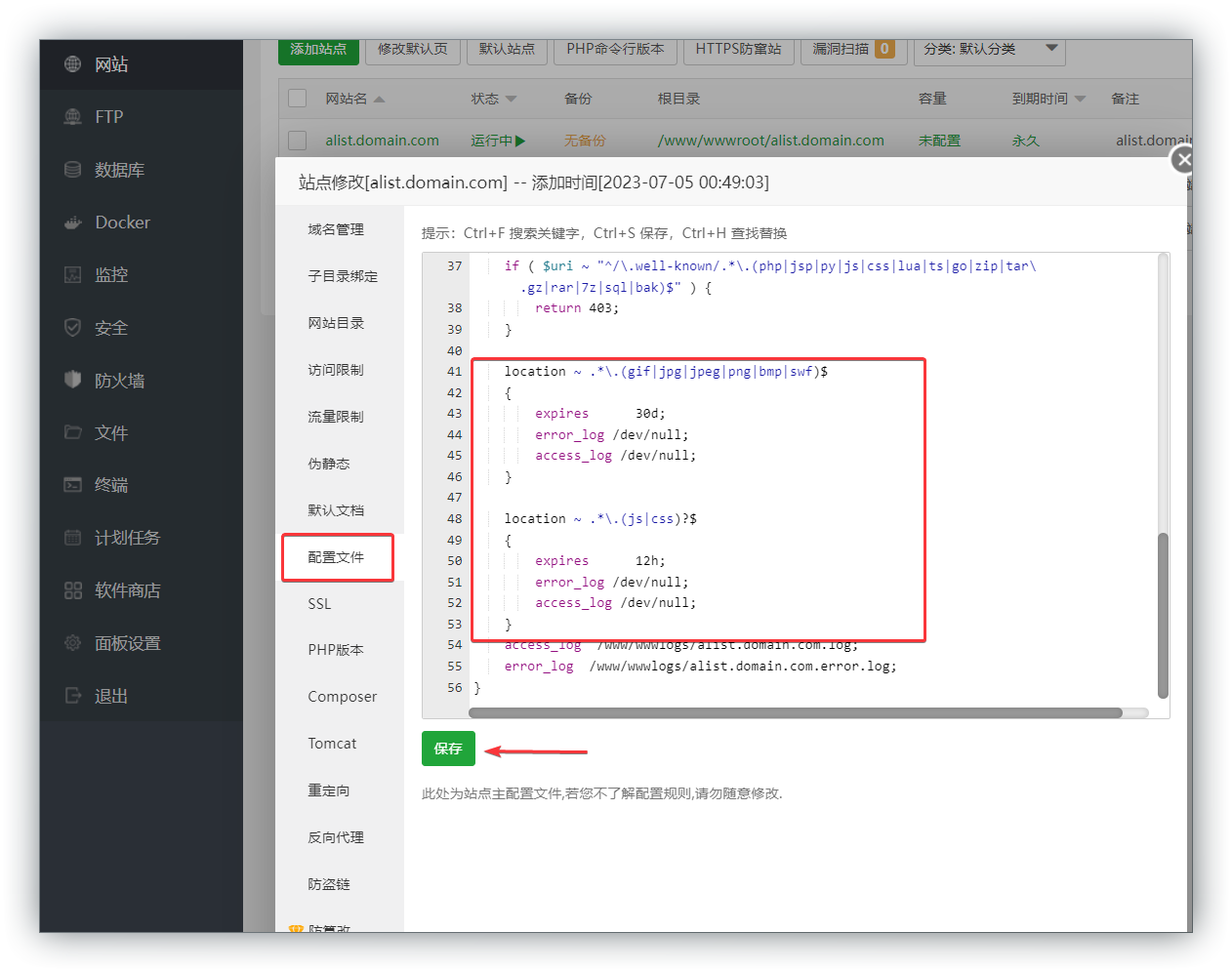

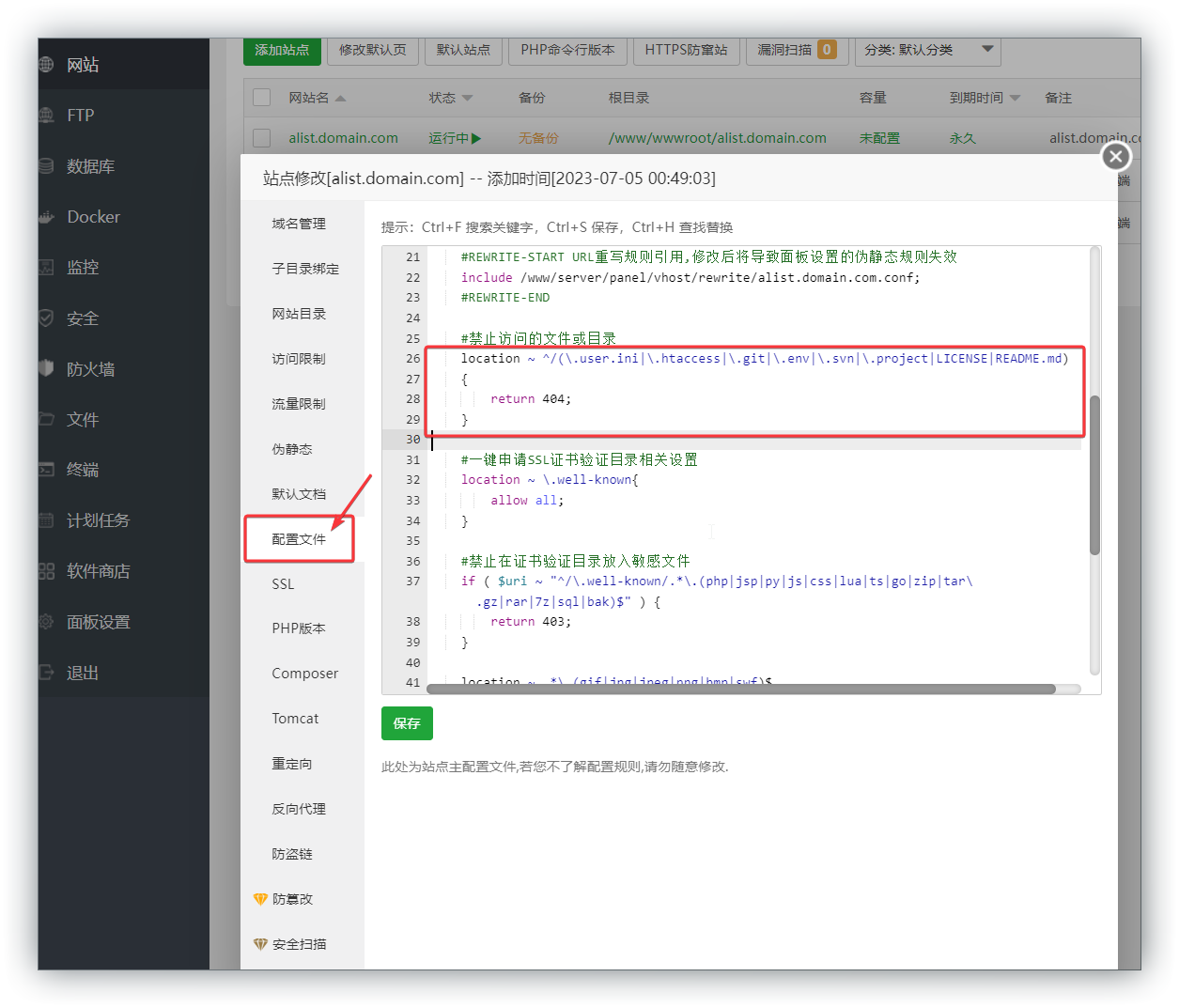

- Remove the default panel code.
- 删除面板默认代码；

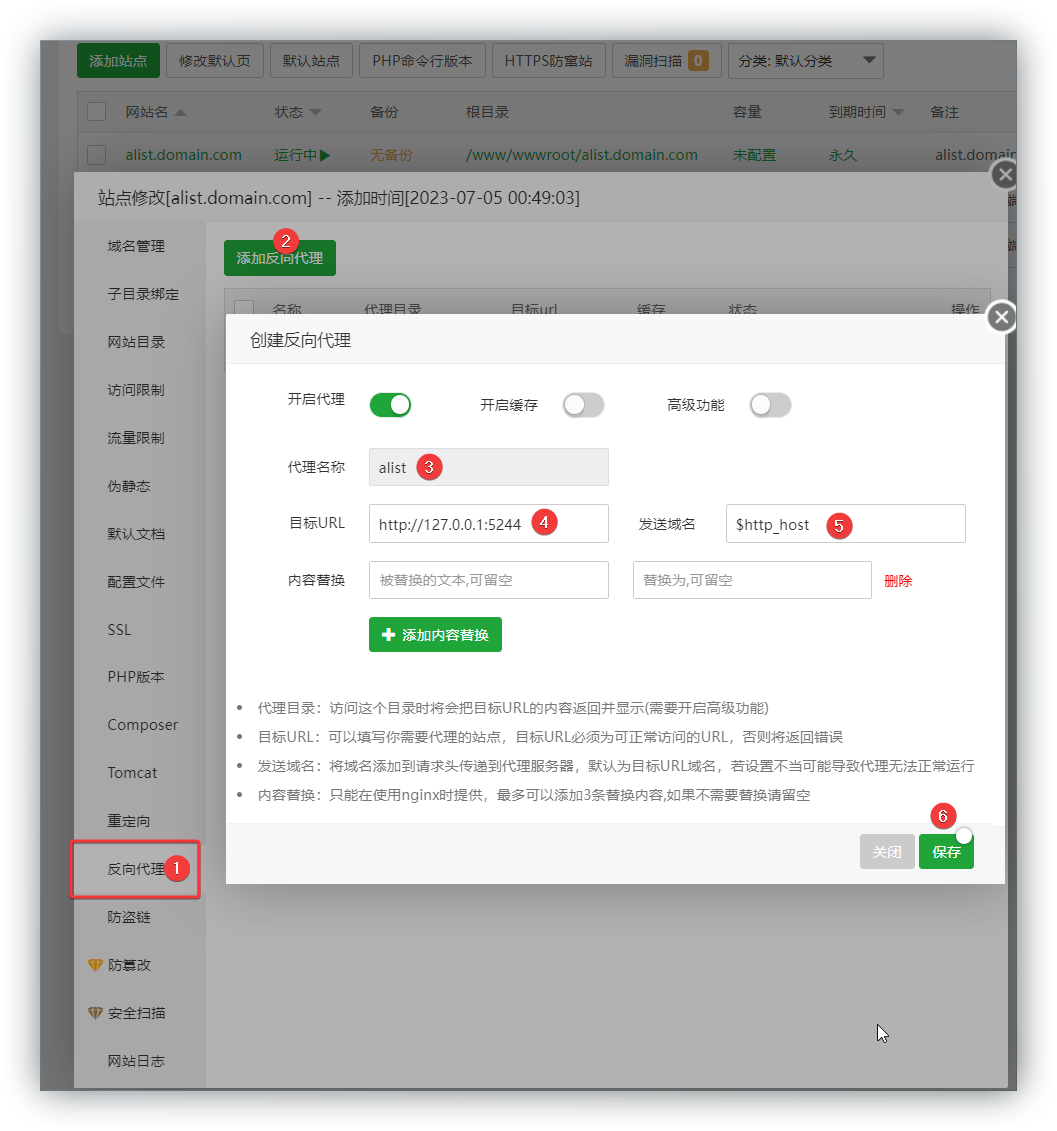

- Add the reverse proxy.
- 添加反向代理；
If you need to apply for an
SSL certificate, you can first apply for the certificate in theSSLoption, and then set up the reverse proxy. Alternatively, you can set up the reverse proxy first, disable the proxy function, apply for anSSLcertificate, and then enable the proxy again.
如需申请
SSL证书，可先在SSL选项中申请证书，然后在设置反向代理。或者设置反向代理之后，关闭反向代理功能，申请SSL证书后再次开启代理。
