S3

S3 object storage protocols, such as COS, OSS, B2, etc.

S3 对象存储协议，如 COS、OSS、B2。

Bucket ​

存储桶 ​

bucket name

存储桶名

Endpoint ​

Endpoint ​

Endpoint address (If you don’t know, you can read the official documents below)

Endpoint address（不知道可以看下方的官方文档）

Region ​

地区 ​

area (If you don’t know, you can read the official documents below)

地区（不知道可以看下方的官方文档）

Access key id ​

访问密钥 id ​

Access key id

Access key id

Secret access key ​

安全访问密钥 ​

Secret access key

Secret access key

Session token ​

会话令牌 ​

Session token，Normally, the three-segment token needs to be used, and the two-segment token does not need to fill in this option.

会话令牌，三段式token需要使用，正常是两段式不需要填写

Custom host ​

自定义 Host ​

Custom cdn acceleration domain name

自定义 CDN 加速域名

Enable custom host presign ​

启用自定义 HOST 签名 ​

When "Custom host" is left blank, this option does not function.

When disabled: The returned URL does not include signature, which is suitable for cases where the custom host is a CDN.

When enabled: The returned URL includes signature, which is suitable for cases where the host and OSS are from the same data center, the Endpoint is an internal access domain within the data center, and the custom host is an external access domain.

不填写“自定义 Host”时本选项无效。

关闭时：返回的URL后不接签名信息，适用于自定义Host是CDN的情况。

启用时：返回的URL后接签名信息，适用于主机和对象存储服务来自同一个机房，Endpoint是机房内部访问域名，自定义Host是外部访问域名的情况。

Sign url expire ​

签名链接有效期 ​

The validity period of the signed download address is 4 hours by default. If a custom accelerated domain name is used, this option is invalid.

签名下载地址的有效期默认为 4 小时。 如果使用自定义加速域名，该选项无效。

Placeholder ​

占位文件名 ​

The name of placeholder file.

占位符文件的名称。

Force path style ​

强制路径样式 ​

If enable ForcePathStyle, usually needed for minio.

是否启用 ForcePathStyle，通常是 minio 需要的。

List object version ​

列出对象版本 ​

Refer to s3 sdk documents.

参见 S3 的 SDK 文档。

Remove bucket ​

移除bucket ​

Remove bucket name from path when using custom host.

使用自定义主机时从路径中删除bucket名称。

Add filename to disposition ​

添加filename到disposition ​

Add filename to Content-Disposition header.

添加filename到Content-Disposition头中。

Add object storage examples and official documents ​

添加对象存储示例及官方文档 ​

S3 Object Storage includes but is not limited to these. There are many more, such as Microsoft and Google, which have not been added. There are no examples here because it is difficult to register and activate and cannot provide example tutorials. If you have an account, please contact us and provide an account and I will add it.

对象存储包含但不限于只有这些，还有很多例如微软谷歌没有添加，这里没有示例是因为注册开通困难无法提供示例教程，如果您有帐号欢迎联系提供帐号我来添加

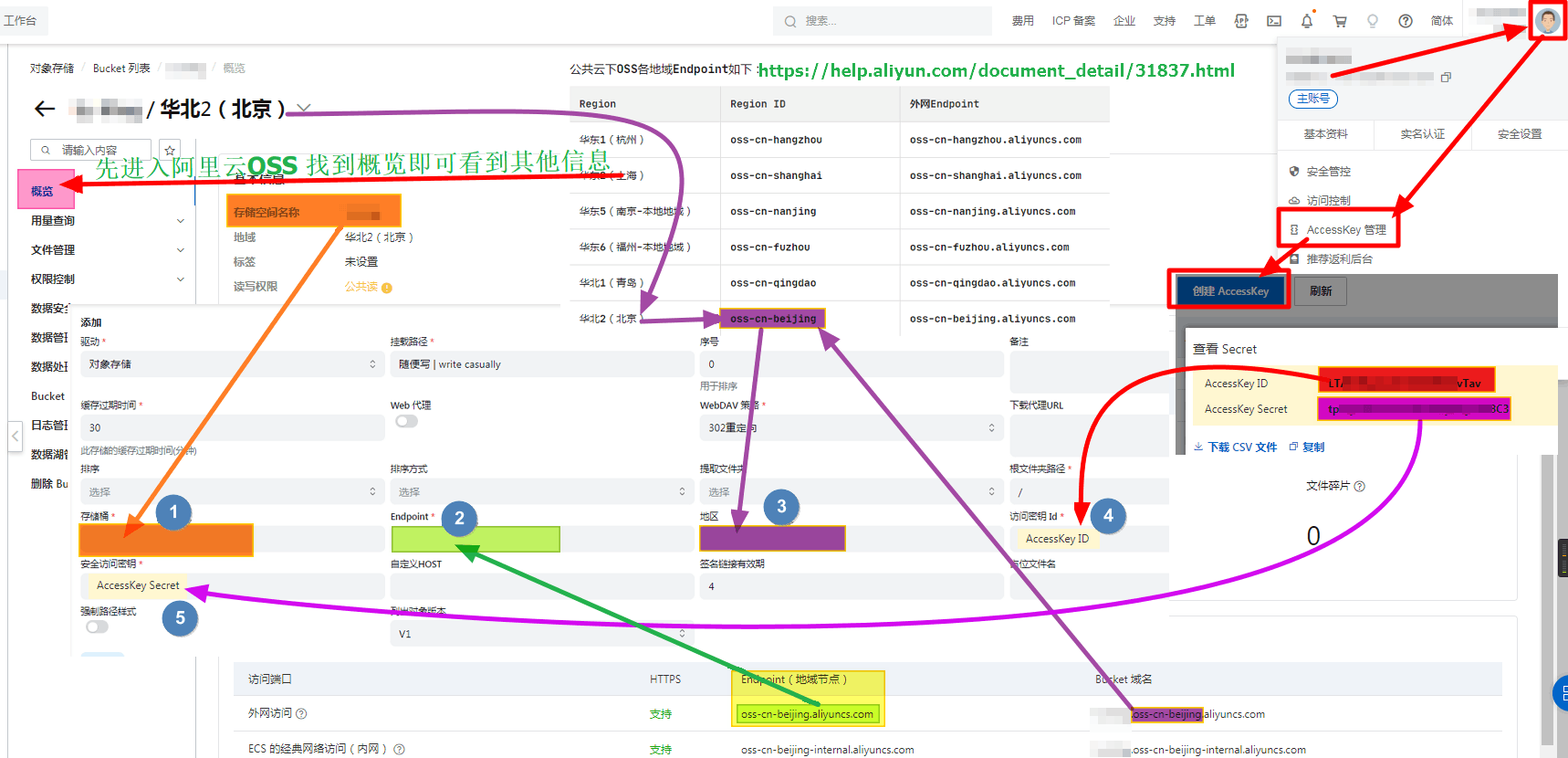

Alibaba ​

阿里云 ​

TIP

OpenList needs to skip referer to mount Alibaba Cloud Disk. If you do not allow referer to be empty in anti-leech, it will not work, because Alibaba Cloud Disk uses Alibaba Cloud OSS (in Beijing area)

In fact, the Region|Region option can be written as Endpoint, but for the sake of specification, let’s write it according to the comparison table.:::

TIP

OpenList 挂载阿里云盘需要跳过 referer ，若你在防盗链开启不允许 referer 为空的话会无法使用，因为阿里云盘用的就是阿里云OSS（北京地区的）

其实 地区|Region 选项写 Endpoint 一样的也可以用，但是为了规范还是照着对照表写吧。

Fill in example:

s3

填写示例：

s3

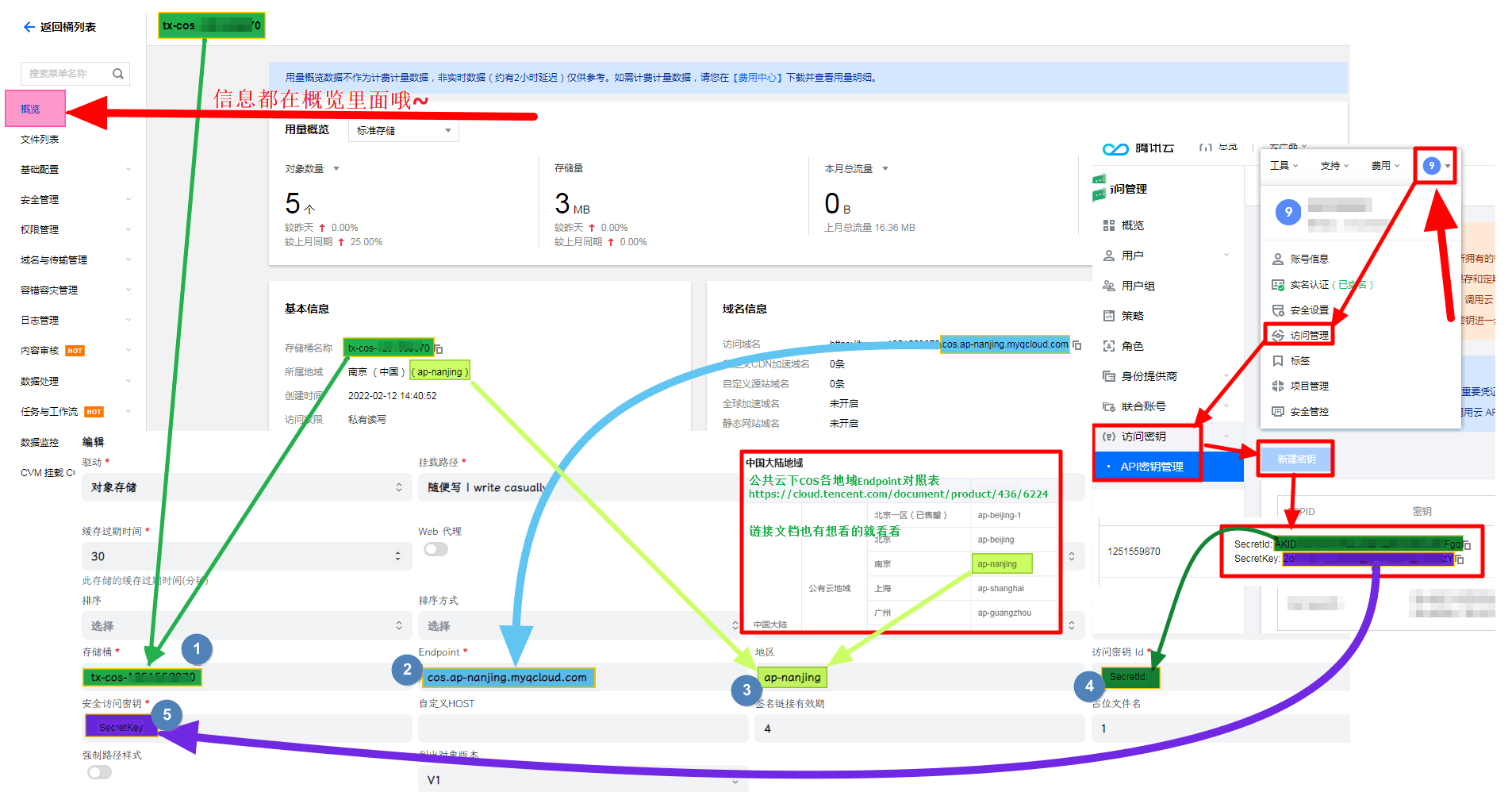

Tencent ​

腾讯云 ​

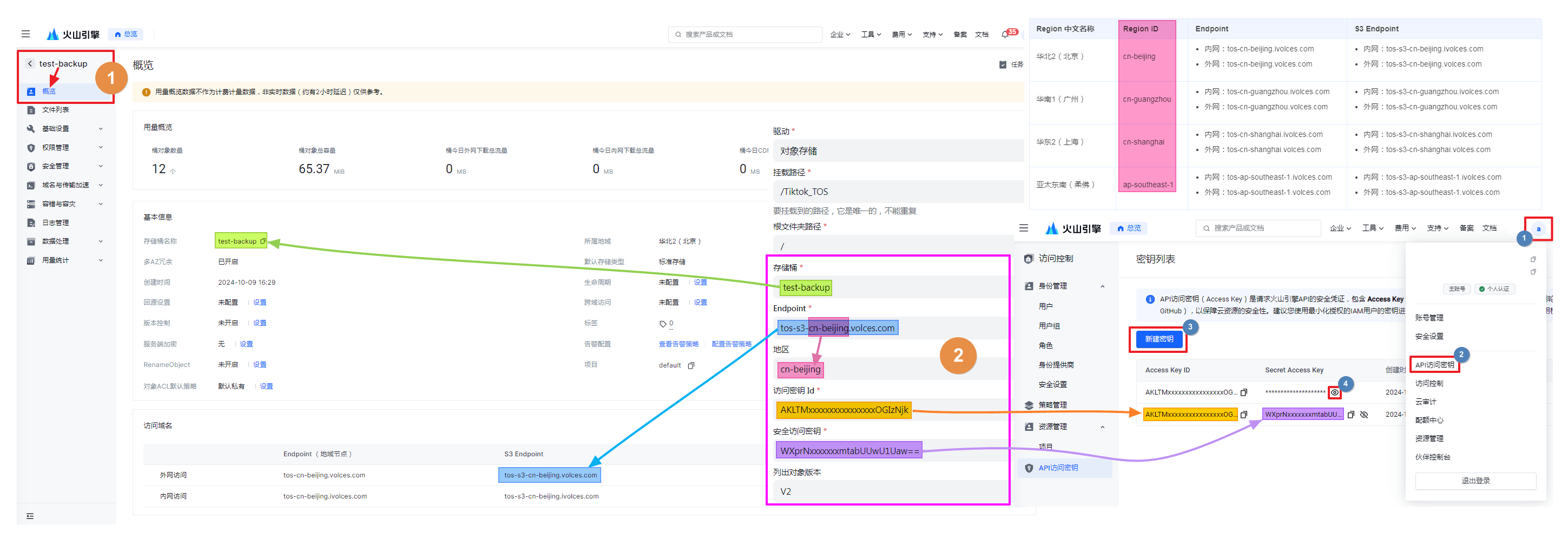

VolcEngine ​

火山引擎 ​

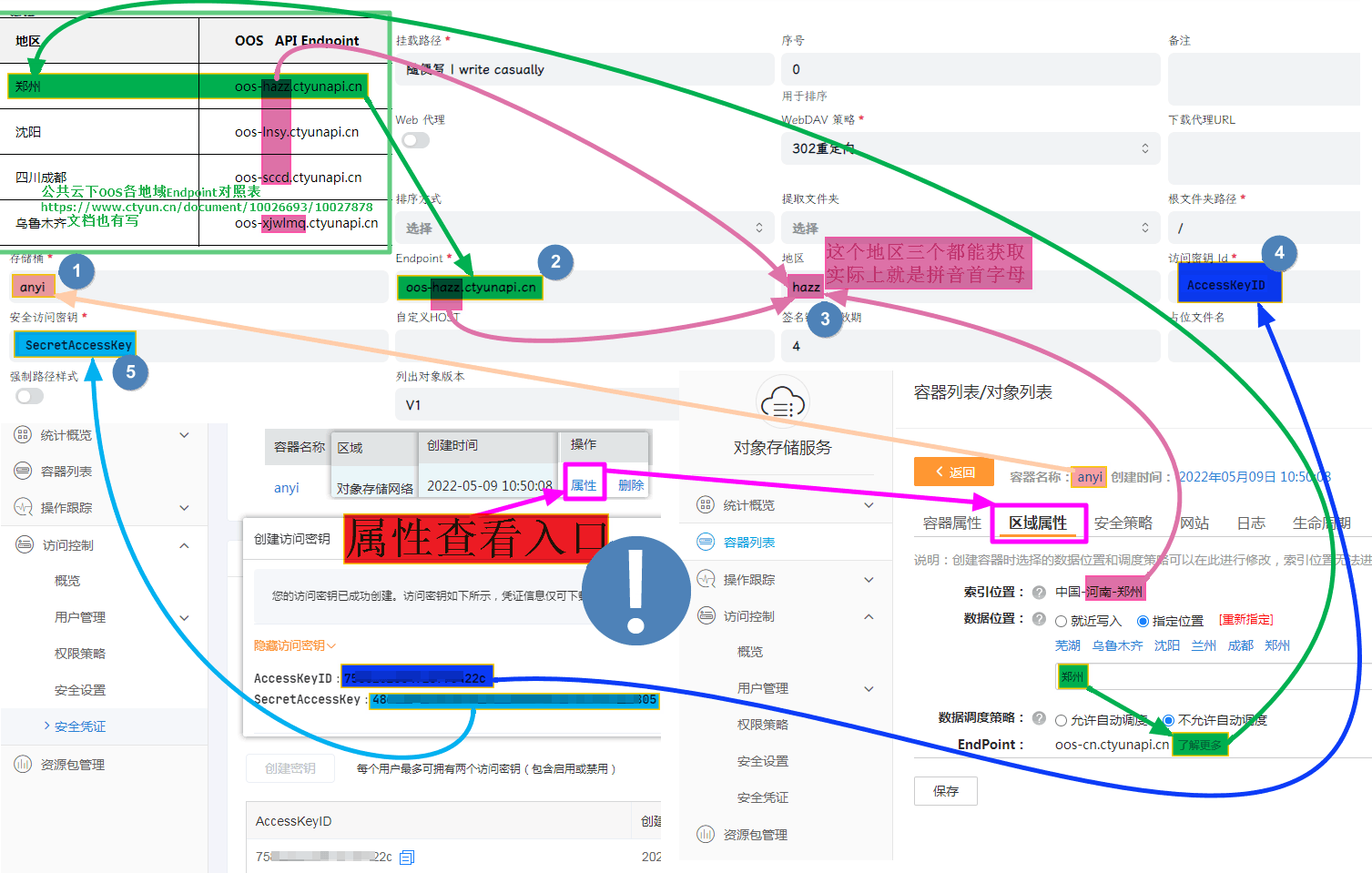

Tianyi ​

天翼云 ​

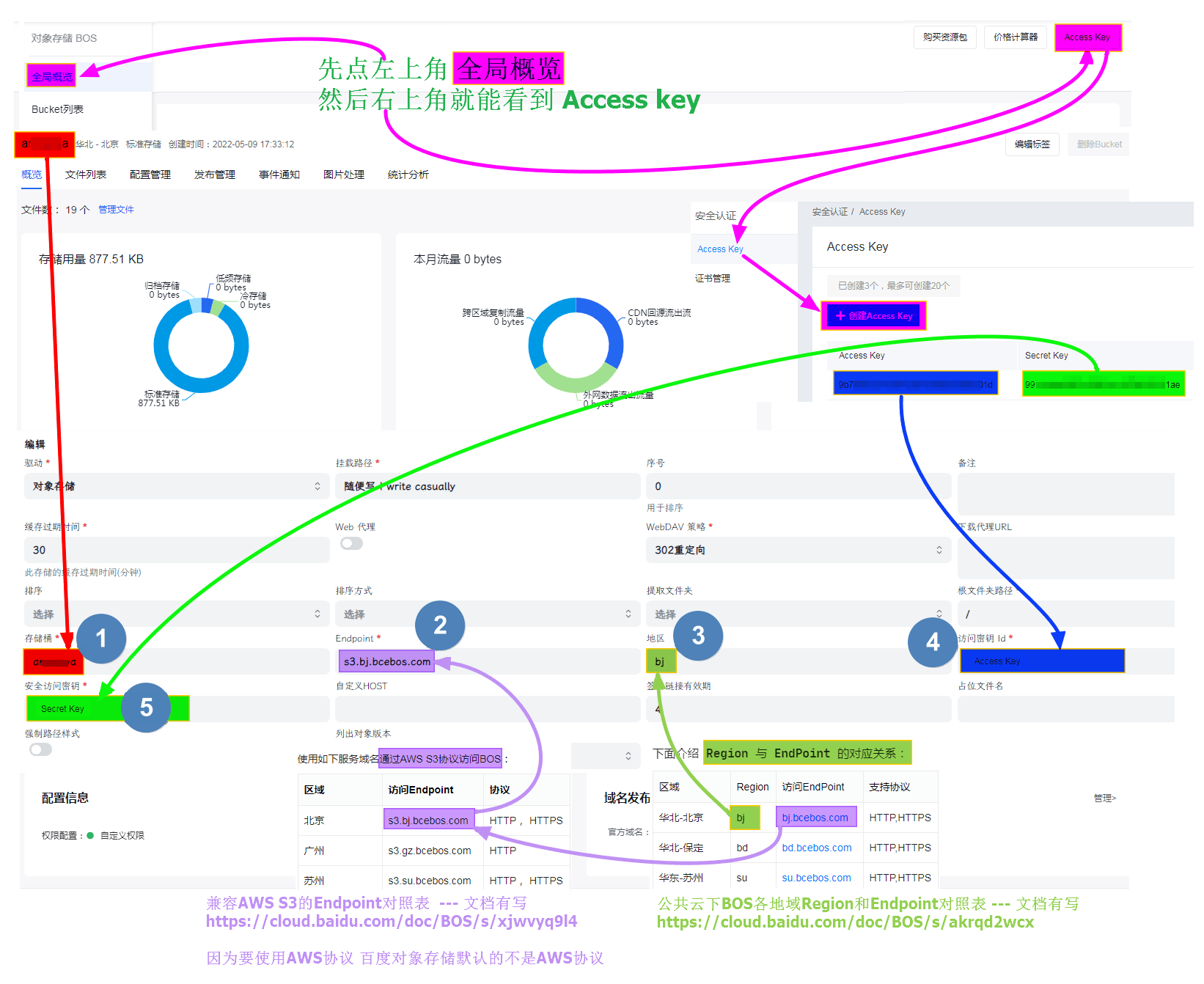

Baidu ​

百度云 ​

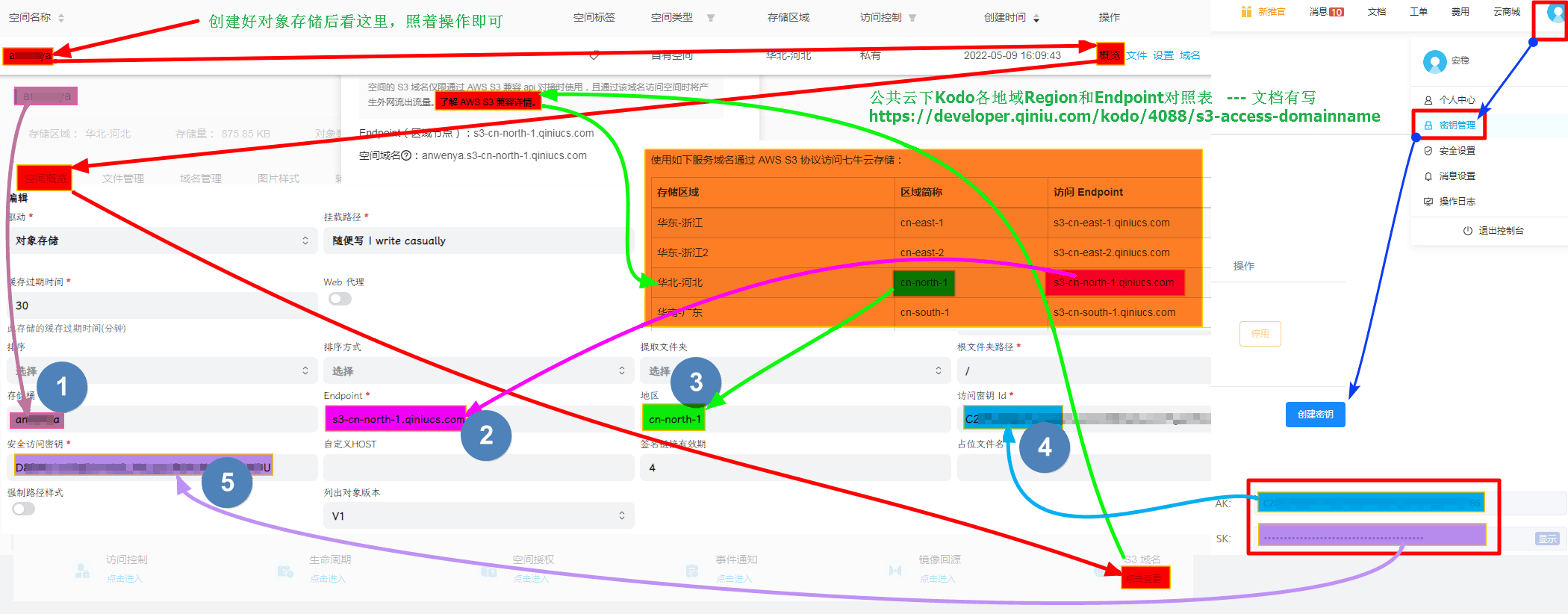

Qiniu ​

七牛云 ​

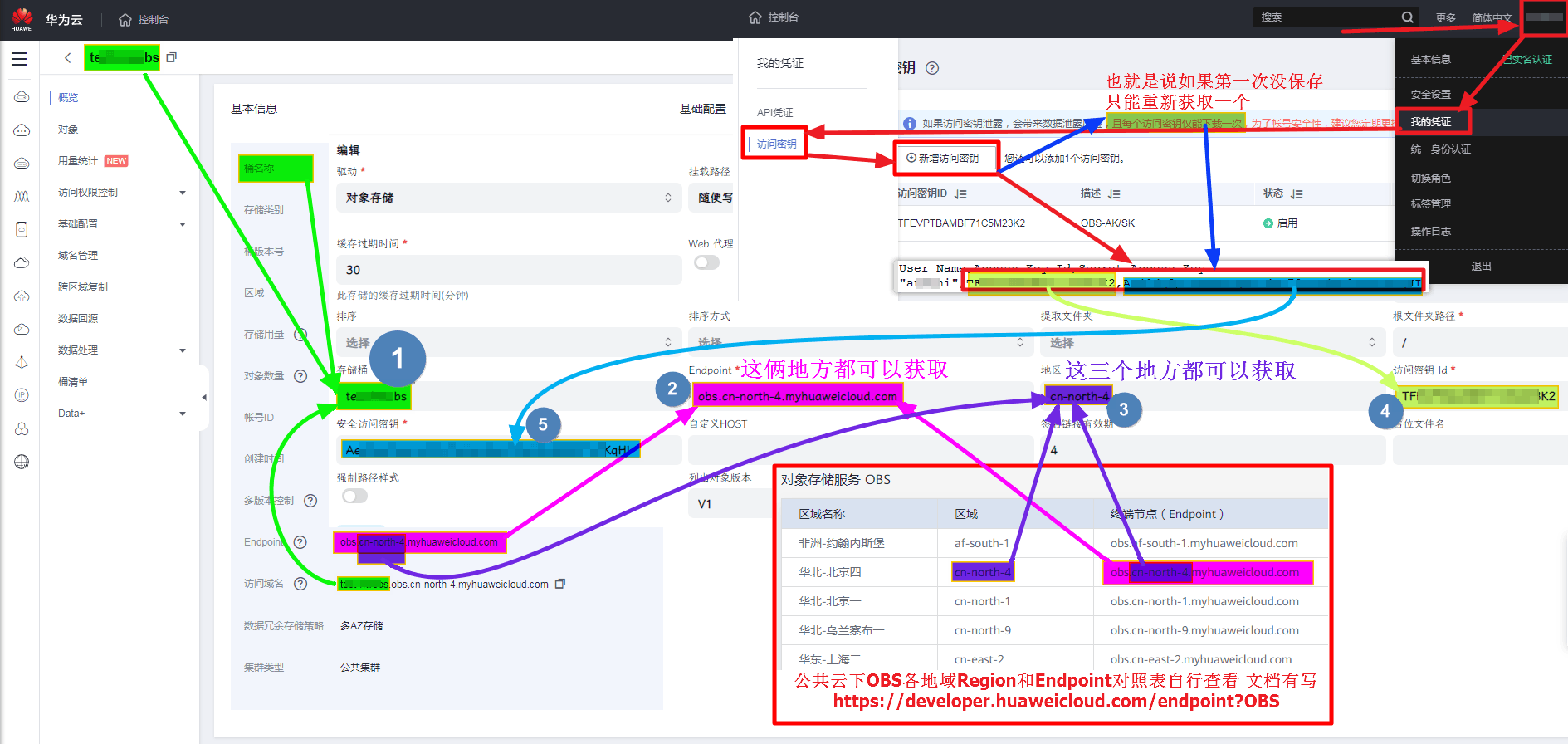

Huawei ​

华为云 ​

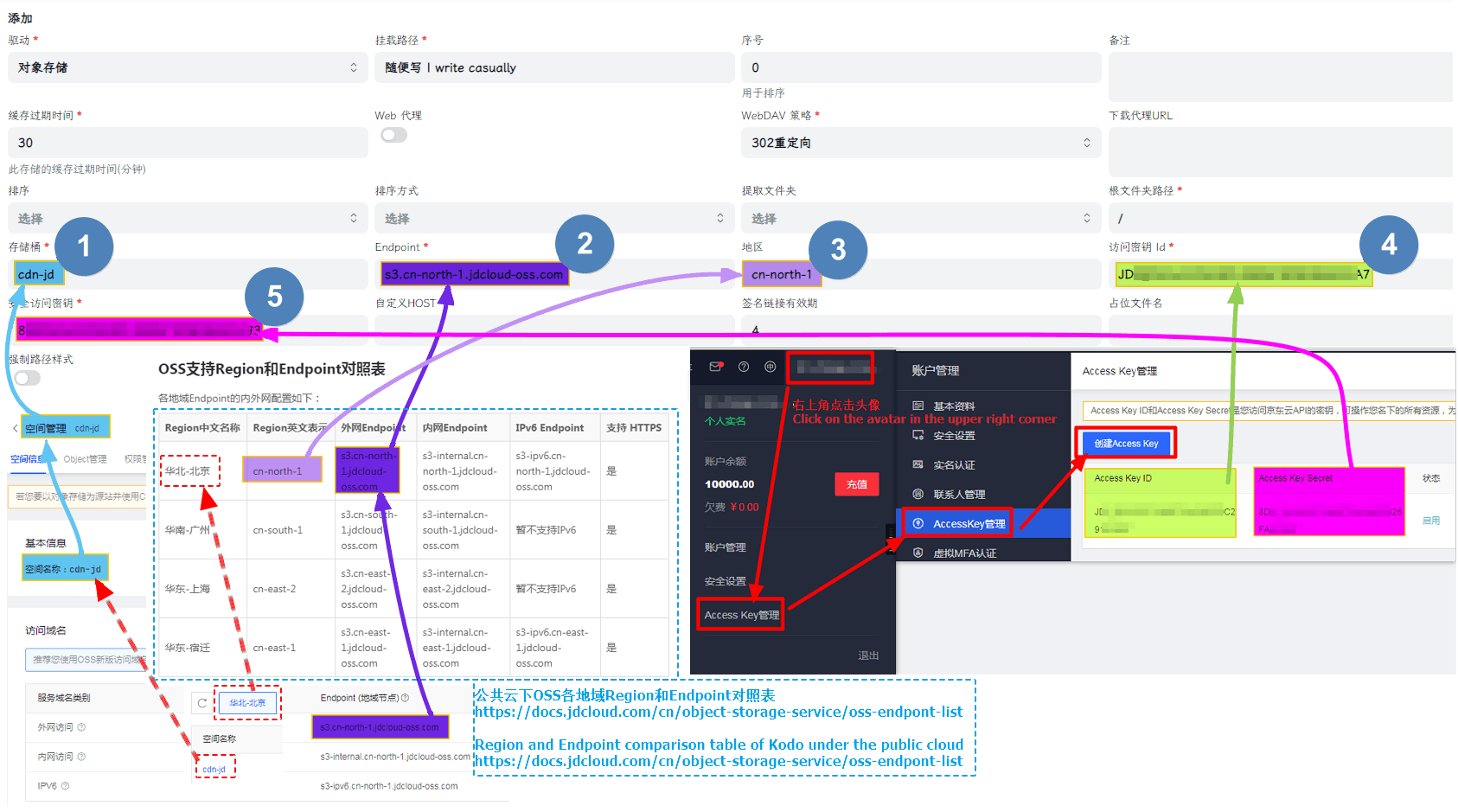

JD ​

京东云 ​

京东云OSS官网

优点：免费10G，支持IPV6

缺点：需要预充值100元才能开通，不推荐尝试，但是预存开通对象存储后提现依旧可以用。

公共云下OSS各地域Region和Endpoint对照表

填写示例：

s3

JD CLOUD OBS Official Website

Advantages: free 10G, support IPV6

Disadvantages: need to precharge 100 to open，However, after the pre-deposit is completed, the object storage is activated, and the pre-deposited amount can still be used after withdrawal.

Region and Endpoint comparison table of Kodo under the public cloud

Fill in example:

s3

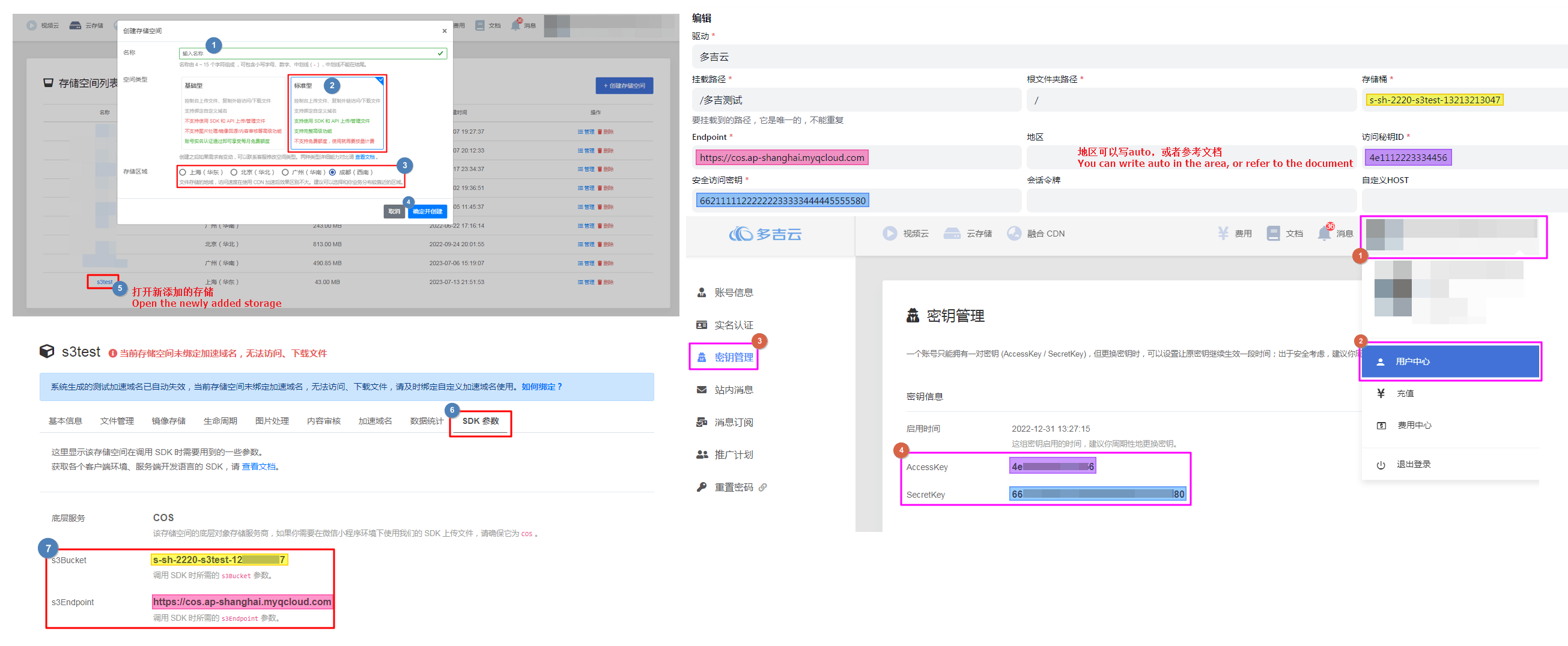

Doge ​

多吉云 ​

多吉云OSS官网，如果要添加多吉云，请使用单独的多吉云驱动添加，请勿使用对象存储驱动

地区代码：

json
// 0: 上海（华东），1: 北京（华北），2: 广州（华南），3: 成都（西南）
s3

Doge Cloud OSS Official Website，If you want to add Doge, use a separate DogeCloud driver to add, please do not use the S3 the driver

Region Code：

json
// 0: 上海（华东），1: 北京（华北），2: 广州（华南），3: 成都（西南）
s3

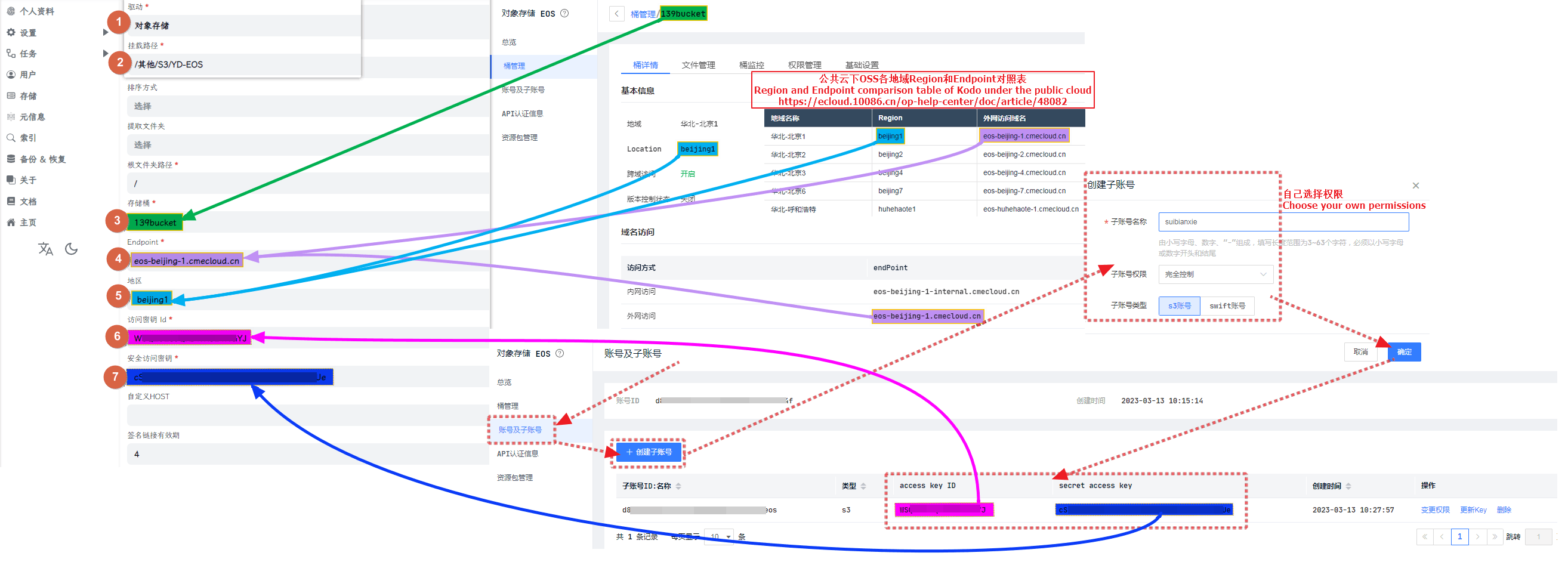

139 ​

移动云 ​

upyun ​

又拍云 ​

Amazon ​

亚马逊 ​

亚马逊S3官网

端点 URL 包含存储桶所在的区域名称

例1，如果您的存储桶位于美国东部（俄亥俄）区域

则 Endpoint (终端节点) URL 的格式为 s3.us-east-2.amazonaws.com/your-bucket-name

Region (地区)参数：us-east-2

存储桶名称：your-bucket-name（你自己的存储桶名称）

例2，我的的存储桶是东京的，存储桶名字叫 cdn-aw，那么完整的参数填写就是如下

  1. Endpoint：s3.ap-northeast-1.amazonaws.com
  2. 地区：ap-northeast-1
  3. 存储桶名称：cdn-aw

下面我们看一下完整的参数填写示例吧

填写示例

s3

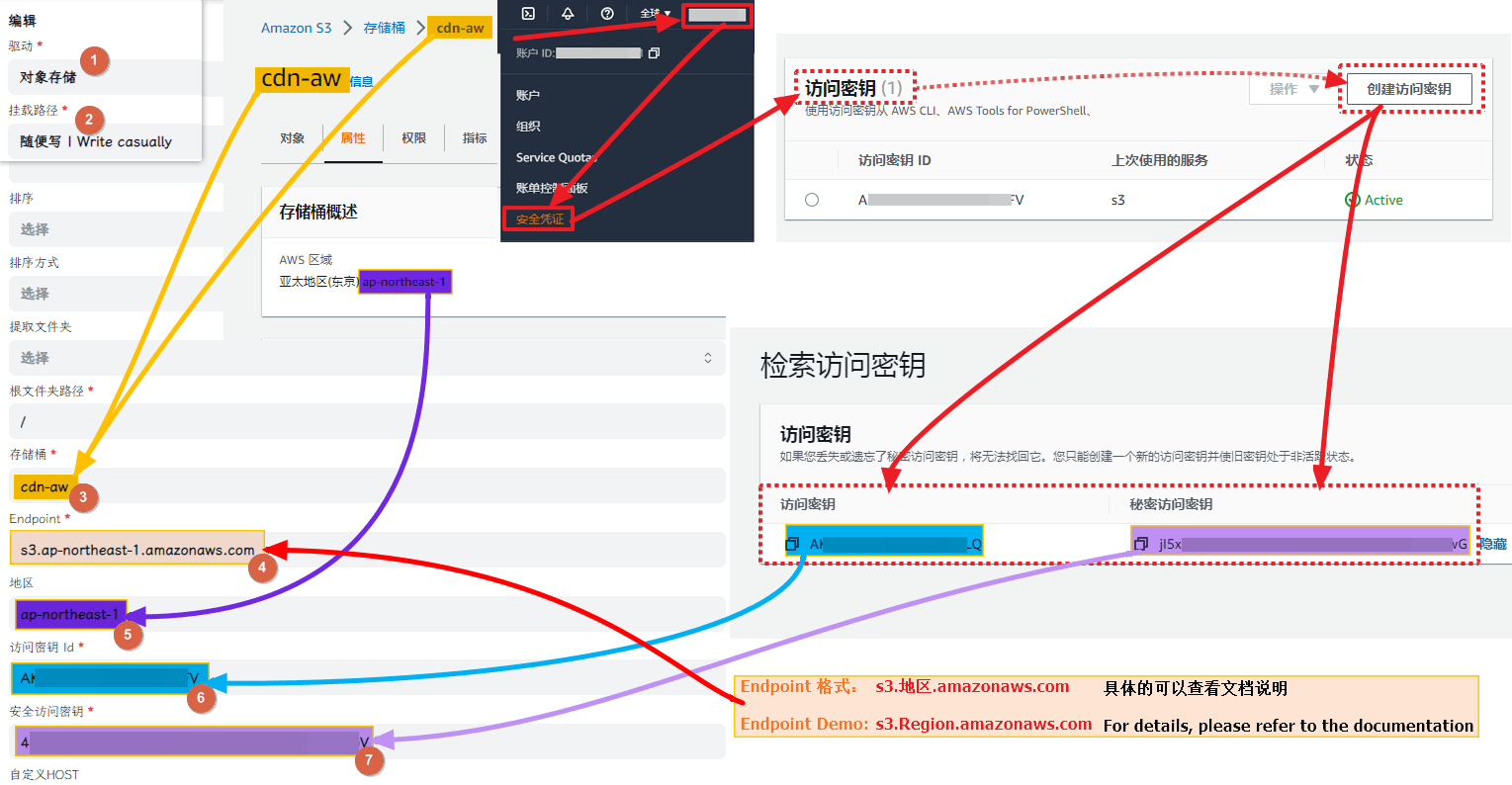

Amazon S3 Official Website

The endpoint URL contains the name of the region where the bucket is located

Example 1, if your bucket is in the US East (Ohio) region

Then the format of the Endpoint URL is s3.us-east-2.amazonaws.com/your-bucket-name

Region parameter: us-east-2

Bucket name: your-bucket-name (your own bucket name)

Example 2, my storage bucket is Tokyo, and the name of the storage bucket is cdn-aw, then the complete parameter filling is as follows

  1. Endpoint: s3.ap-northeast-1.amazonaws.com
  2. Region: ap-northeast-1
  3. Bucket Name: cdn-aw

Let’s take a look at the complete parameter filling example

Fill in example:

s3

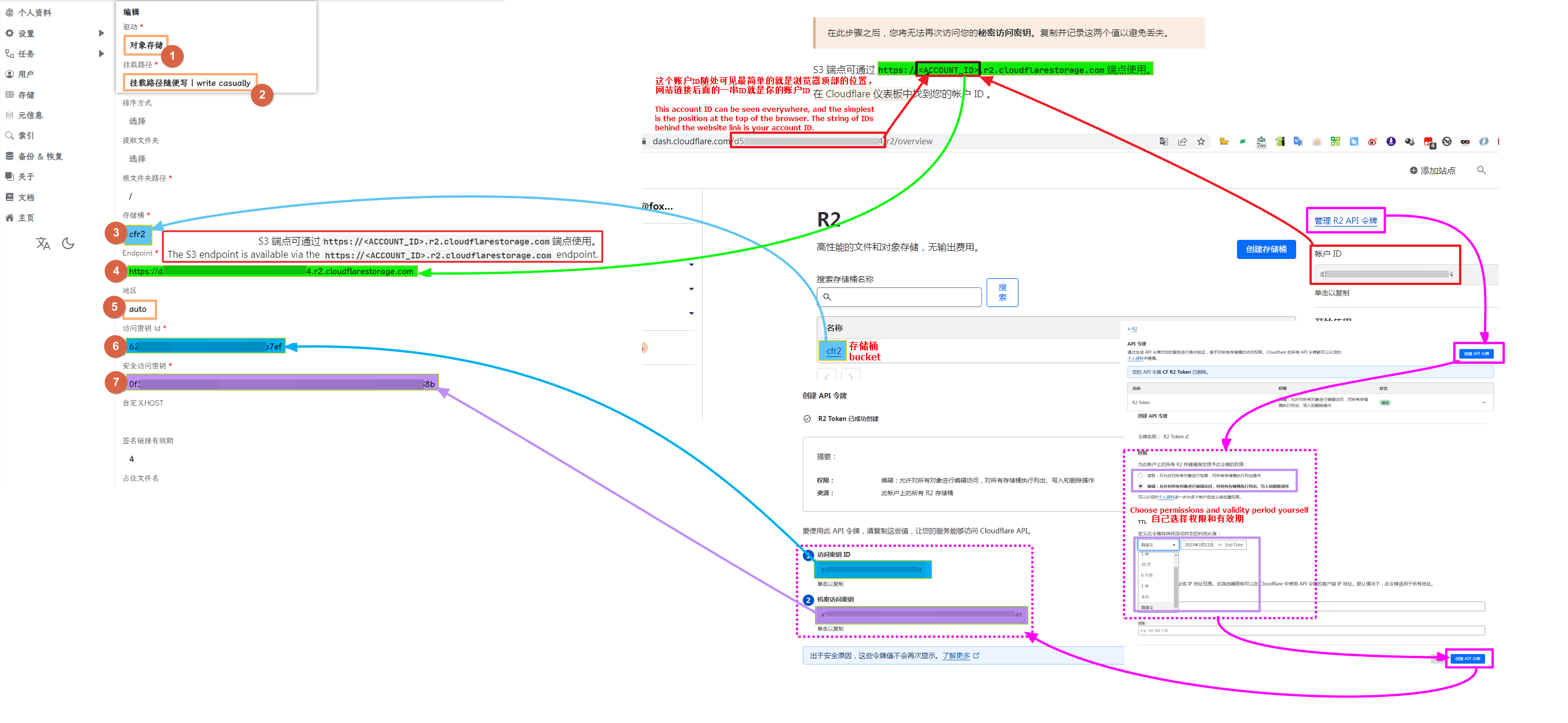

Cloudflare R2 ​

Cloudflare R2 ​

Cloudflare R2官网

Endpoint：S3 端点可通过 https://<ACCOUNT_ID>.r2.cloudflarestorage.com 端点使用

ACCOUNT_ID 就是你的账号ID，随处可见例如顶部地址栏链接后面的ID就是你账号ID

填写示例：

s3

Cloudflare R2 Official Website

Endpoint: The S3 endpoint is available via the https://<ACCOUNT_ID>.r2.cloudflarestorage.com endpoint.

ACCOUNT_ID: This account ID can be seen everywhere, and the simplest is the position at the top of the browser. The string of IDs behind the website link is your account ID.

填写示例：

s3

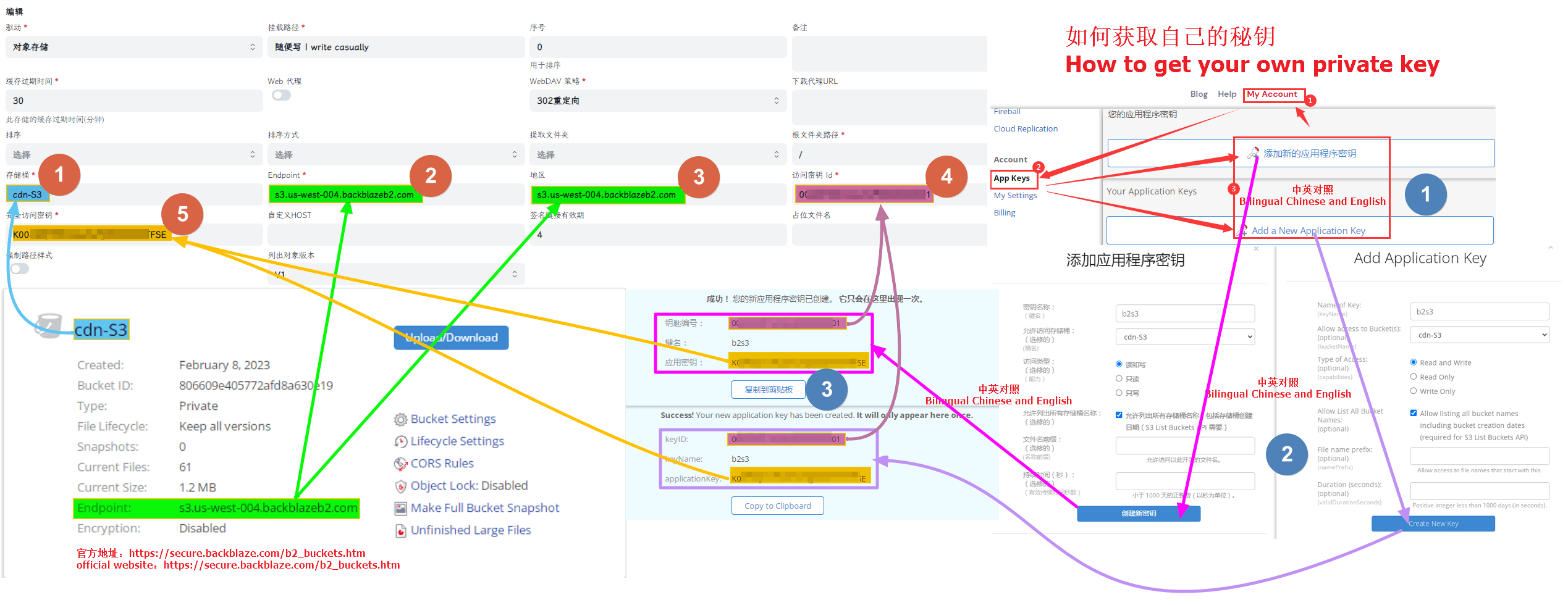

Backblaze B2 ​

Backblaze B2 ​

Backblaze官网

全称 Backblaze，不需要验证信息，说是前10G免费。

填写示例：

s3

B2 Official Website

The full name is Backblaze, no verification information is required, and it is said that the first 10G is free.

Fill in example:

s3

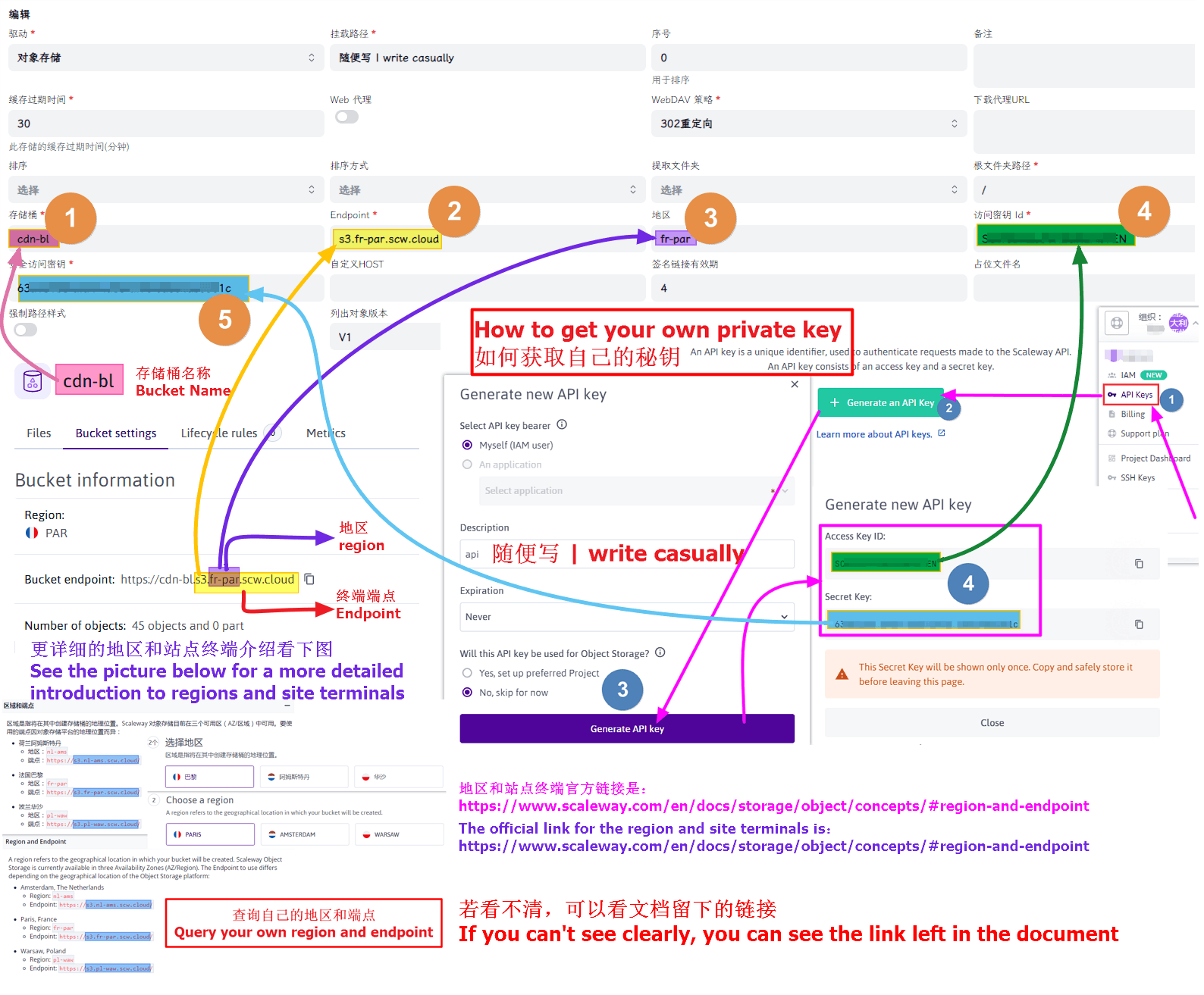

Scaleway ​

Scaleway ​

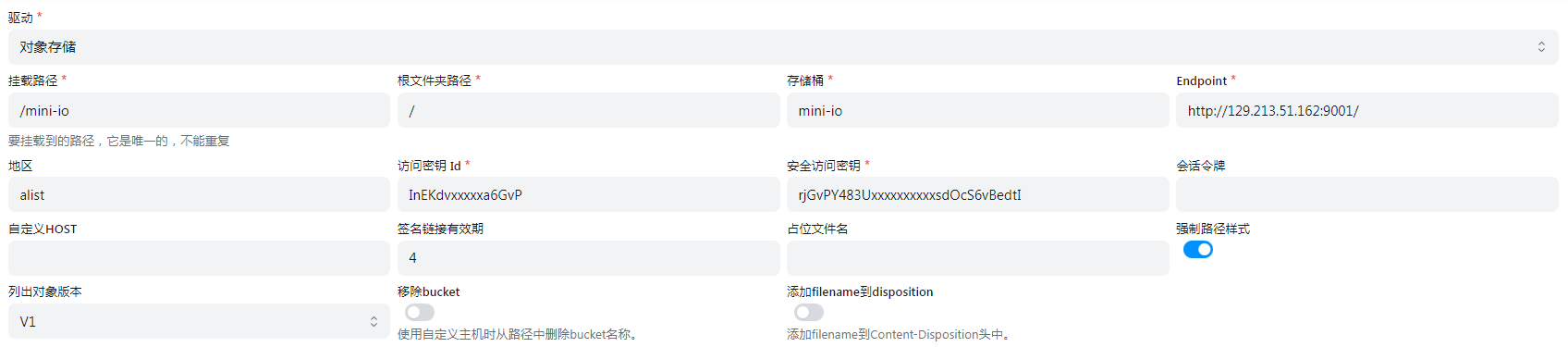

Minio ​

Minio ​

使用Minio自建对象存储的应该都知道，ID和秘钥如何获取，这里就不说了

只需要填写存储桶名称，访问秘钥ID，安全访问秘钥，Endpoint 这四个选项，地区空着即可

Endpoint：http(s)://your-server:9001/，可以使用IP也可以使用域名

最后记得打开 强制路径样式 才能使用，否则无法使用点击查看详情

填写示例：

s3

Those who use Minio self-built object storage should know how to obtain the ID and secret key, so I won’t talk about it here.

You only need to fill in the four options of bucket name, access key ID, security access key, and Endpoint, and leave the region empty.

Endpoint：http(s)://your-server:9001/, You can use IP or domain name

Finally, remember to enable Force Path Style to use, otherwise it cannot be used Click to view details

Fill in example:

s3

Google Cloud ​

I assume you already have a Google Cloud account, so let’s go directly to the Google Cloud Storage settings page: https://console.cloud.google.com/storage/settings;tab=interoperability

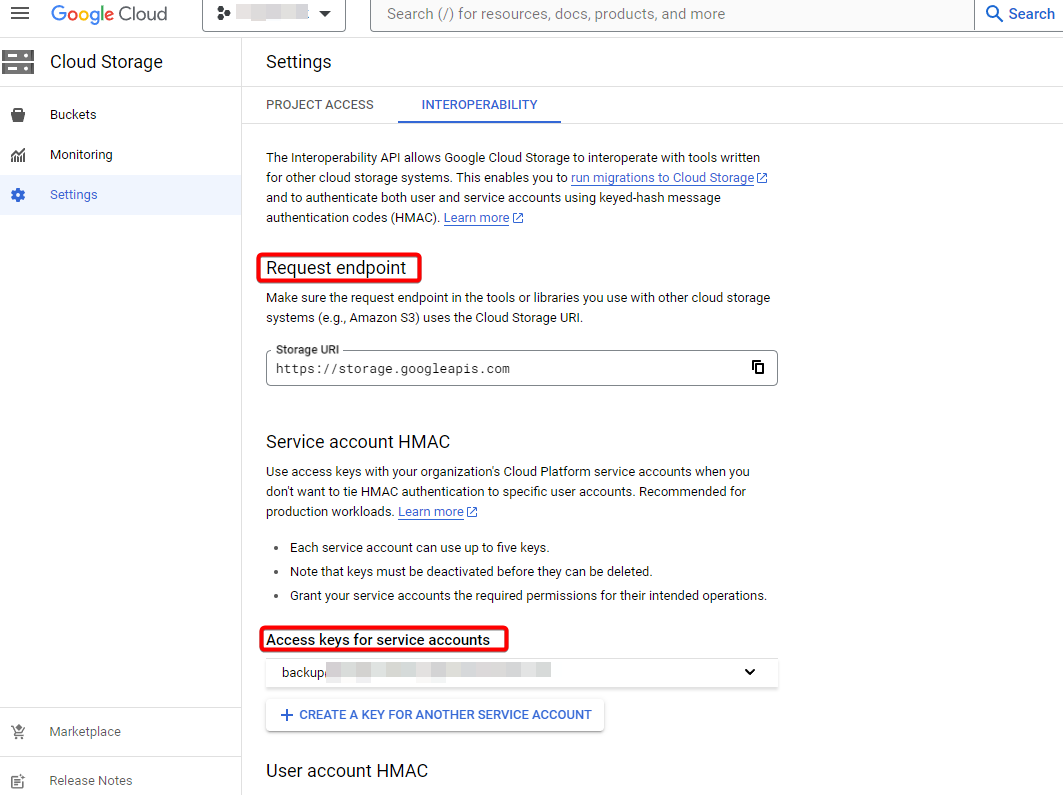

Then you will enter the following page:

Google Cloud

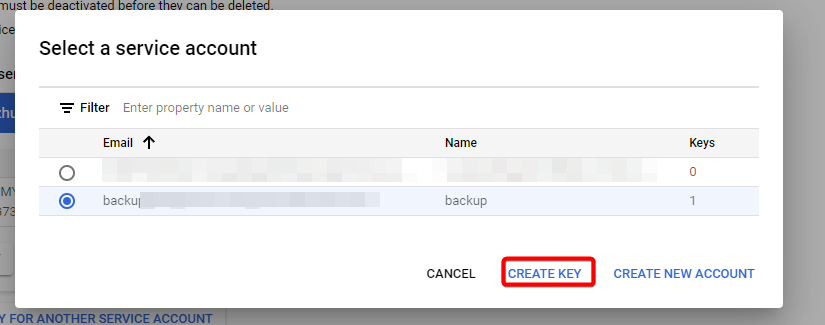

You can see Endpoint and Access Key on this page, you need to select an account and create an Access Key

Google Cloud

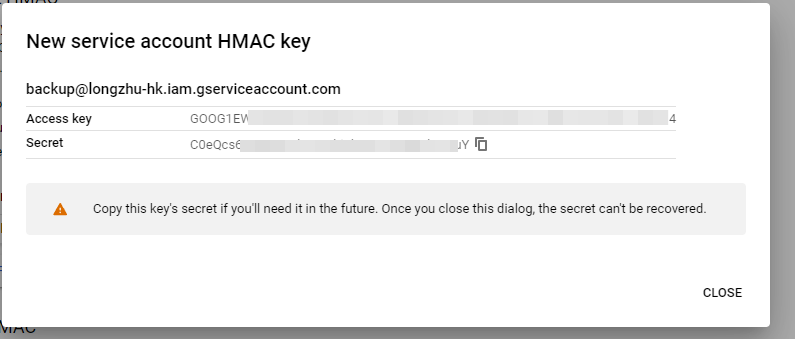

Access Key/Secret will be displayed on the new page, They will only be displayed this time. Please save them properly.

Google Cloud

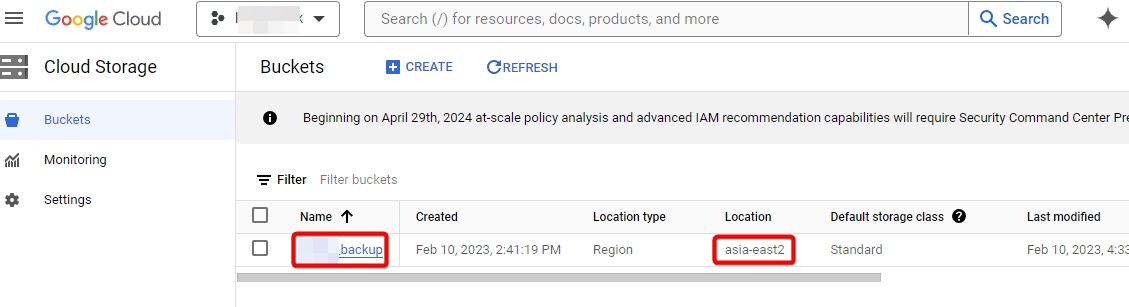

At this point, the EndPoint, access key Id, and security access key required by OpenList have been obtained. Please view the remaining buckets and regions in the corresponding buckets.

Google Cloud

Google Cloud ​

默认你已经有Google Cloud的账号了，那么我们直接进入 Google Cloud Storage的设置页面：https://console.cloud.google.com/storage/settings;tab=interoperability

然后会进入下面这个页面

Google Cloud

在这个页面我们可以很明显的看到 Endpoint 和 Access Key，我这里因为已经创建的有一个AK/SK了，如果你没有，直接点下面的创建即可，点了创建，会提示你执行账户，我这因为账号问题，有两个，正常情况下只有一个，你选了账户后，点创建

Google Cloud

然后就会出现Access Key/Secret 了，它俩分别对应OpenList的 访问密钥 Id 和 安全访问密钥，这个只显示一次，一定要复制并保存到本地

Google Cloud

到这里，OpenList所需要的 EndPoint 、访问密钥 Id、安全访问密钥 就获取到了，剩余的 存储桶和地区，请在存储桶里面查看

Google Cloud

Intranet access ​

内网接入 ​

The server and object storage need to be in the same region, currently only supports Alibaba Cloud OSS. For example, if you are Alibaba Cloud Hangzhou Server and Alibaba OSS in Hangzhou, you can use it.

  • Previous behavior (taking Aliyun OSS as an example):

    • Download link without custom host (using internal endpoint):

      https://<bucket-name>.oss-cn-beijing-internal.aliyuncs.com/<filename>?X-Amz-Algorithm=***&X-Amz-Credential=***...

    • Download link within custom host (using external endpoint, the following link is invalid):

      https://<bucket-name>.oss-cn-beijing.aliyuncs.com/<filename>

  • Current behavior when EnableCustomHostPresign is false: Same as previous

  • Current behavior when EnableCustomHostPresign is true :

    • Download link within custom host (using external endpoint, the following link is valid):

      https://<bucket-name>.oss-cn-beijing.aliyuncs.com/<filename>?X-Amz-Algorithm=***&X-Amz-Credential=***...

服务器和对象存储需要同一地域，目前仅支持阿里云OSS。例如你是阿里云杭州服务器 和 杭州地区的对象存储 就可以使用。

  • 之前的行为（以阿里云 OSS 为例）：

    • 没有自定义主机的下载链接（使用内部端点）：

      https://<bucket-name>.oss-cn-beijing-internal.aliyuncs.com/<filename>?X-Amz-Algorithm=***&X-Amz-Credential=***...

    • 使用自定义主机的下载链接（使用外部端点，以下链接无效）：

      https://<bucket-name>.oss-cn-beijing.aliyuncs.com/<filename>

  • 当前行为，当 EnableCustomHostPresign 为 false 时：与之前相同

  • 当前行为，当 EnableCustomHostPresign 为 true 时：

    • 使用自定义主机的下载链接（使用外部端点，以下链接有效）：

      https://<bucket-name>.oss-cn-beijing.aliyuncs.com/<filename>?X-Amz-Algorithm=***&X-Amz-Credential=***...

How to solve the problem of files with the same name as the folder ​

出现和文件夹同名文件如何解决 ​

After mounting the object storage and opening the folder, there is always a file with the same name as the folder that cannot be deleted or opened

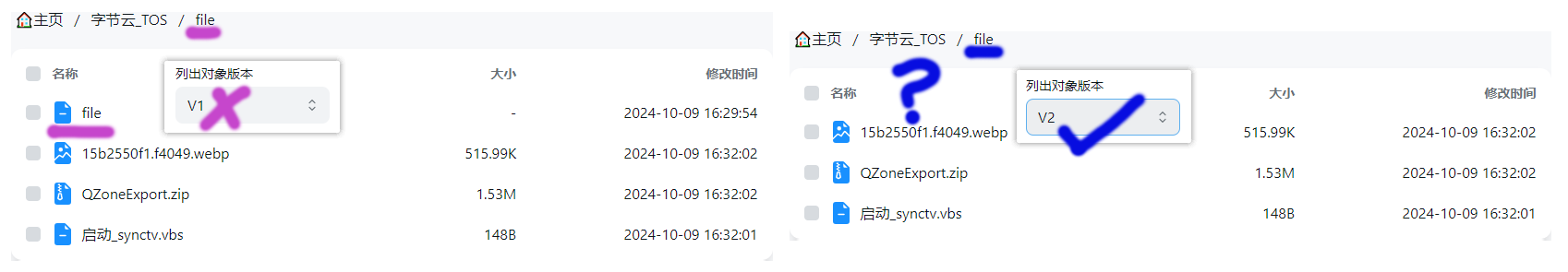

  • The solution is to change the List object version in the configuration to V2, as shown in the following figure

挂载对象存储后打开文件夹后总是会出现一个和文件夹名一样的文件无法删除也无法打开

  • 解决办法把配置里面的 列出对象版本 换成V2就可以，参考如下图所示

The default download method used ​

默认使用的下载方式 ​
